All kits made from High-Quality USA Aluminum and Steel. Proudly manufactured in the U.S.A.!
Materials Included:

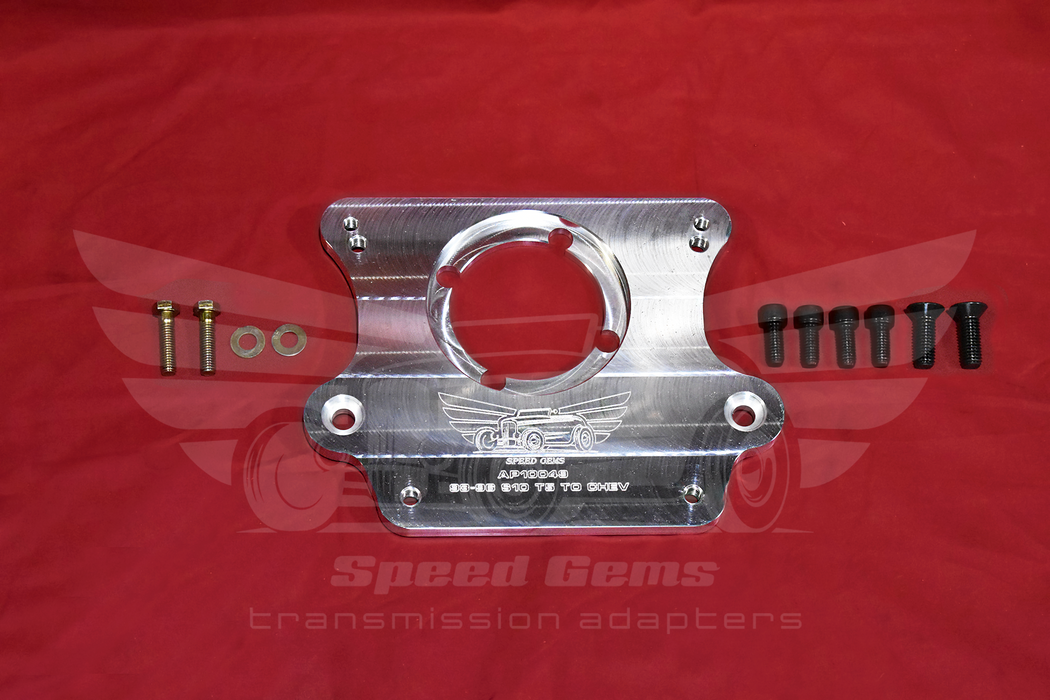

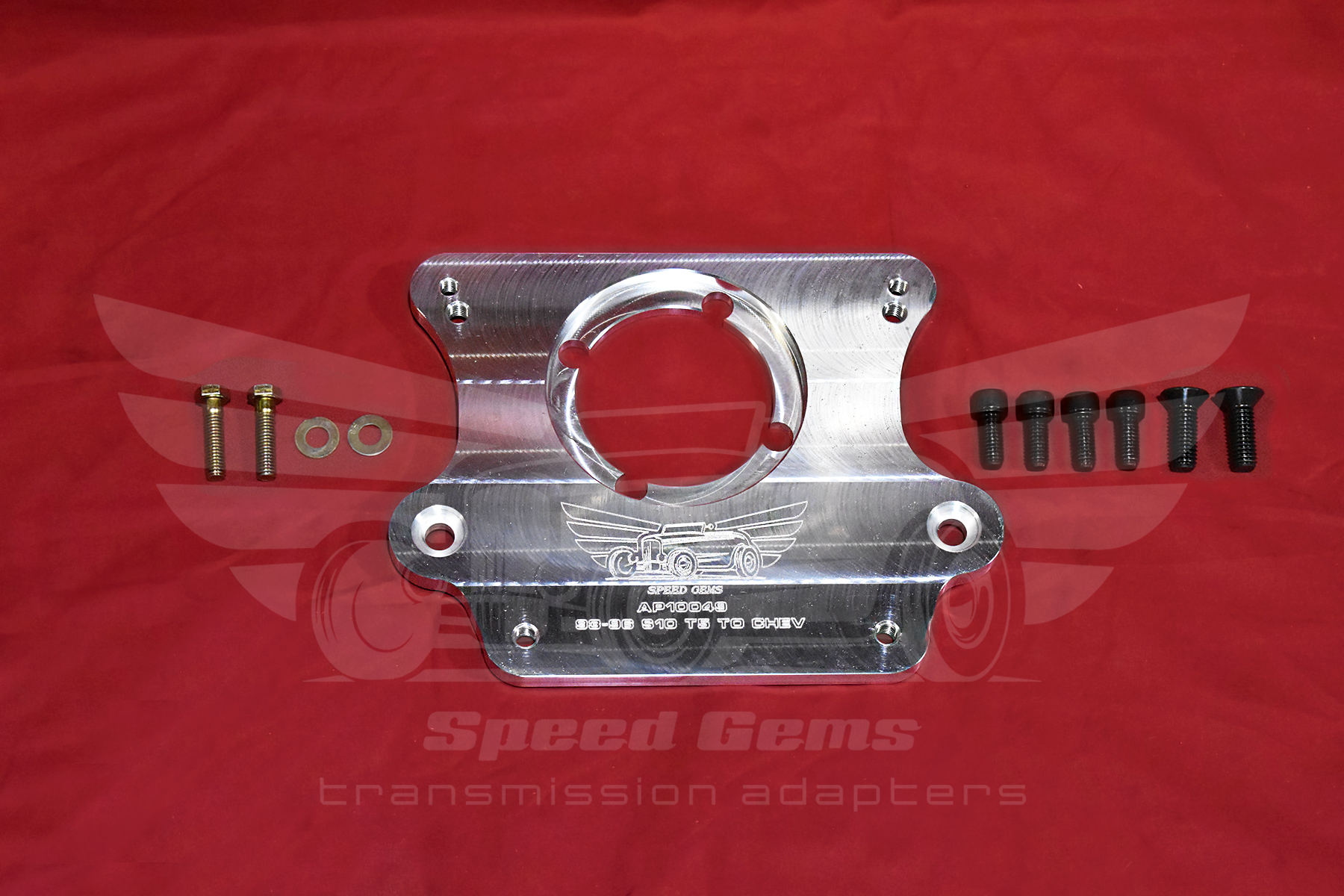

(1) Adapter plate - Chevy Bellhousings to Chevy/Ford T5
(2) HCS 3/8-16 x 1-1/2
(2) FLAT WASHER 3/8
(2) FHSCS 1/2-13 x 1-1/2
(4) HCS 7/16-14 x 1
This BELLHOUSING ADAPTER PLATE allows you to bolt a 1993 thru 1996 Chevy S10 T5 Transmission (with Ford Bolt pattern & 26-spline Input Shaft) onto an old-style, common Chevy V8 Bellhousing.
NOTE:
This kit will also allow you to bolt a Mustang V8-style 1983 thru 1993 Ford T5 Transmission onto an old-style, common Chevy V8 Bellhousing.
The Ford Transmission will need to have the front bearing retainer swapped to a Chevy S10-type retainer. That allows for using the stock Chevy throw-out bearing, fork, etc.
The Turbo 4-cylinder T5 is a little different, but can still be used.
Speed Gems Transmission Adapters are machined right here in the U.S.A.!
*Matching our adapter kits with your engine can be tricky. If you are unsure of which kit to purchase for your engine, please call customer service at (763) 767-4480. Speed Gems is not responsible for return shipping costs of mismatched kits.
